Adult Conventional Circuits

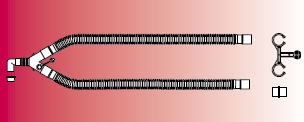

Hudson RCI Adult Ventilator Circuits are available in a variety of configurations, materials and styles. Choose conventional or heated-wire circuits with 22mm blue polyethylene or KRATON® tubing Ported wyes allow pressure sensing and temperature monitoring and include tethered caps for plugging ports • Adult ventilator circuits incorporate standard 22mm and 15mm connections for use with a variety of ventilators • All adult circuits are 72 inches long, except as noted • Individually packaged 10 per case, except as noted Cat. No. 1607 • Standard ventilator circuit • Straight connector inspiratory limb (HME circuit option)

...............................................................................................................................................................................................................................................

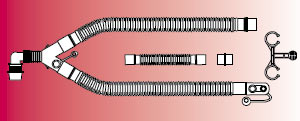

Cat. No. 1608 • Standard ventilator circuit • Includes humidifier limb Cat. No. 1613 • Same as Cat. No. 1608, but without humidifier limb Cat. No. 690-40 • Same as 1613, made of Kraton

...............................................................................................................................................................................................................................................

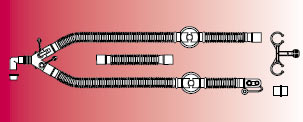

Cat. No. 1609 • Circuit with in-line water traps • Includes humidifier limb Cat. No. 1614/1615 • Same as 1609, but without humidifier limb • Cat. No. 1614 is 48 inches long • Cat. No. 1615 is 60 inches long

...............................................................................................................................................................................................................................................

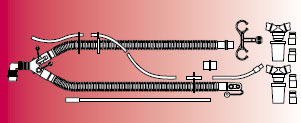

Cat. No. 1617 • Circuit with 1/8 in. and 1/4 in. I.D. pressure monitoring tubing and separate water traps Cat. No. 1619 • Same as 1617, but without water traps Cat. No. 690-30 • Same as 1619, made of Kraton

...............................................................................................................................................................................................................................................
